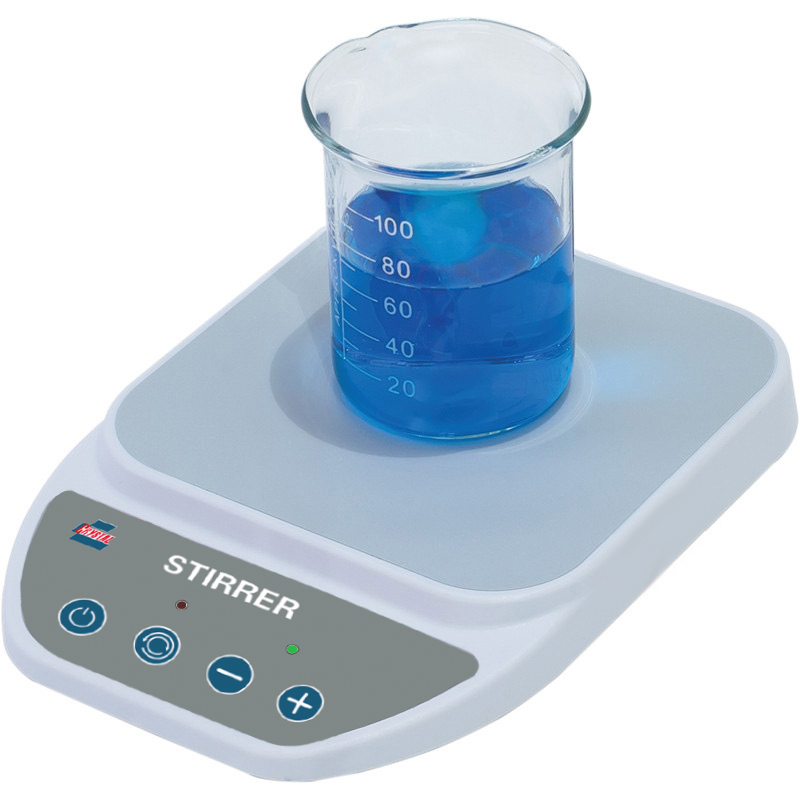

Low Profile Magnetic Stirrers MS-01FUA

Features

Motorless drive stirring mechanism provides quiet and maintenance-free operation
Constructed of corrosion-resistant materials for easy clean-up and long operational life
Ergonomically designed for simple operation and minimal benchtop space usage
Speeds from 0~2000 RPM with capacities and power for any benchtop use
ABS Platforms provide extreme durability and chemical resistance
Timer with an automatic stop available on MS-01DUA (0~99hr 59m)
Five stirring power levels are available on MS-01UA and MS-01TUA for mixing high viscosity liquids

An Essential Instrument for every Laboratory for Mixing Solutions.

Specifications

Model	MS-01FUA
Product Name	Low Profile Magnetic Stirrer
Stirring Speed	15~1500 RPM
Speed Resolution	15 RPM
Automatic reverse stirring direction	Optional mode to reverse stirring direction every 30s
Max Stirrer Bar Length	30 mm (1.18 in)
Platform Size	110 x 110 mm (4.3 x 4.3 in)
Max Capacity	1 x 500mL beaker or flask
Platform Material	ABS plastic
Accessory Included in Standard Package	MSA05 Stirrer Bar Ø7×20 mm (Ø0.28 x 0.79 in)
Ambient Temperature	5℃~40℃
Ambient Relative Humidity	≤80%
Max Power	6W
Dimensions WxDxH	175 x 125 x 20.5 mm (6.9 x 4.9 x 0.8 in)
Power Supply	AC 110V±11V, 60Hz
Weight	0.3 kg (0.7 lb)
IP Protection Rating	IP45
Certifications	CE, RoHS, WEEE
